Main Feature
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,
functionality,longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP65 protection from top panel, top stainless steel plate with flat keyboard surface
for easy cleaning & threaded bolts for easy tightly mounting to enclosure or panel.
An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input,
with firm tactile perception for comfortable operation .
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
Mechanical Data
Actuator/keys: 40 keys, 2.0mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends on keys are
available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 21.0mm for function key,
Key travel: 0.45mm
Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:3.0mm thickness brushed stainless steel
G.W.: 0.75KGs
Dimensions: 216.0mm x 84.0mm (L x W )
Electronical Data
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008；
IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan > 5 years
Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
Interface: PS2, USB available, RS232 for EPP
keyboard with trackball
If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES.
OS: All windows, Linux, Unix, Mac OSX
Environmental Adaptability
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
Reliability
Protection Level: IP65(front panel)
Vandal resistant IK10
Key Lifespan >5 million actuations
MTBF >50000H
MTTR <30min
Application
This Keyboard used for use for unsupervised or semi-supervised positions of varied access applications
internet terminals and information kiosks at universities,shopping malls, hotels, banks, airports, railwaystations
and other public areas, ticket vending machines,gas stations, cash machines (ATMs/CDM), Internet public phones etc.
|
|

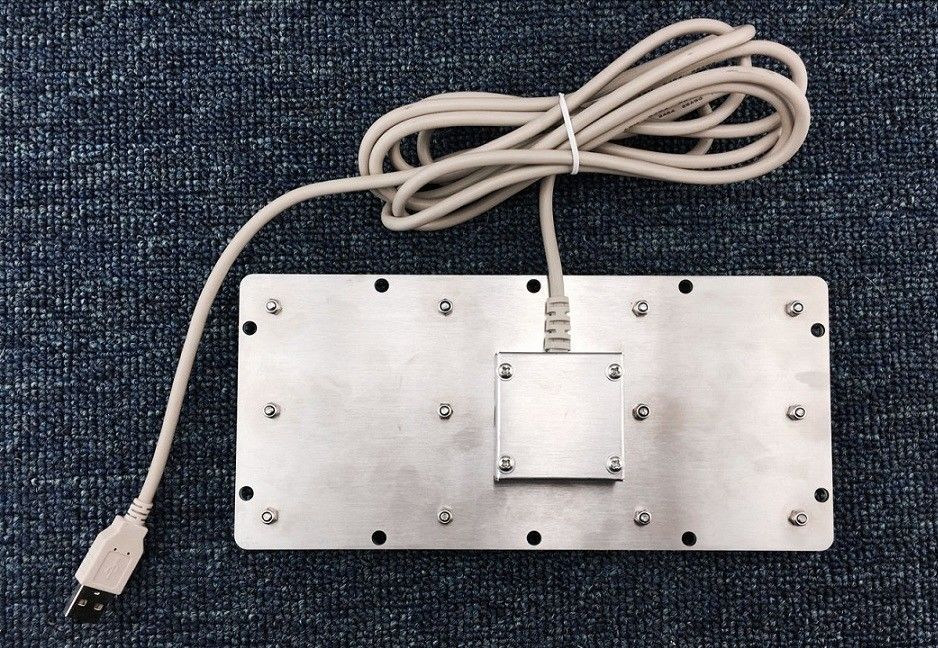

USB/PS/2 metal customized keyboard for road parking Images
|
